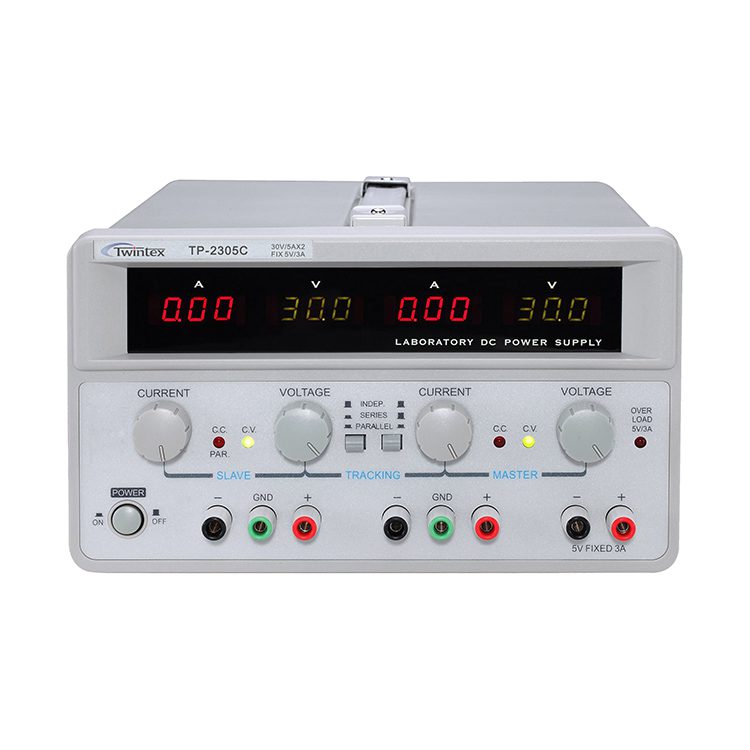

Variable Laboratory Multiple Output Linear DC Power Supply

Variable Laboratory Multiple Output Linear DC Power Supply

Linear DC Power Supply, using toroidal transformer. The adjustable linear DC power supply works in constant voltage and constant current mode. The output ripple is very low, 1mVrms and 3mArms. The DC lab linear regulated power supply give low ripple output, 1mVrms and 3mArm: Dual channel variable voltage power supply 30V 3A or 30V 5A, One fixed DC output 5V 3A power supply. The laboratory linear DC triple power supply can be used as student power supply, laboratory power supply and electronic power supply in factory.



หมวดหมู่: , , ,
คำอธิบาย
  • Introduction
    The TP2000 series are linear DC power supplies with 3 channels, 195W to 315W output. In constant voltage and current operations, the power supply provides high regulation and low ripple & noise. Auto series and parallel operations double output voltage and current. Heat sink and automatic cooling fan control give sufficient cooling to the power supply and minimize fan noise. The output ON/OFF control and preset voltage & current functionprotect the power supply and related loads from unexpected damages. The TP2000 series are widely used in applications of powering operational amplifier, push pull stages, logic circuit and definition systems.
