PPL Series 600W Variable Precision Programmable DC Electronic Load 150V 60A 150V 120A 500V 30A
DC Electronic Loads

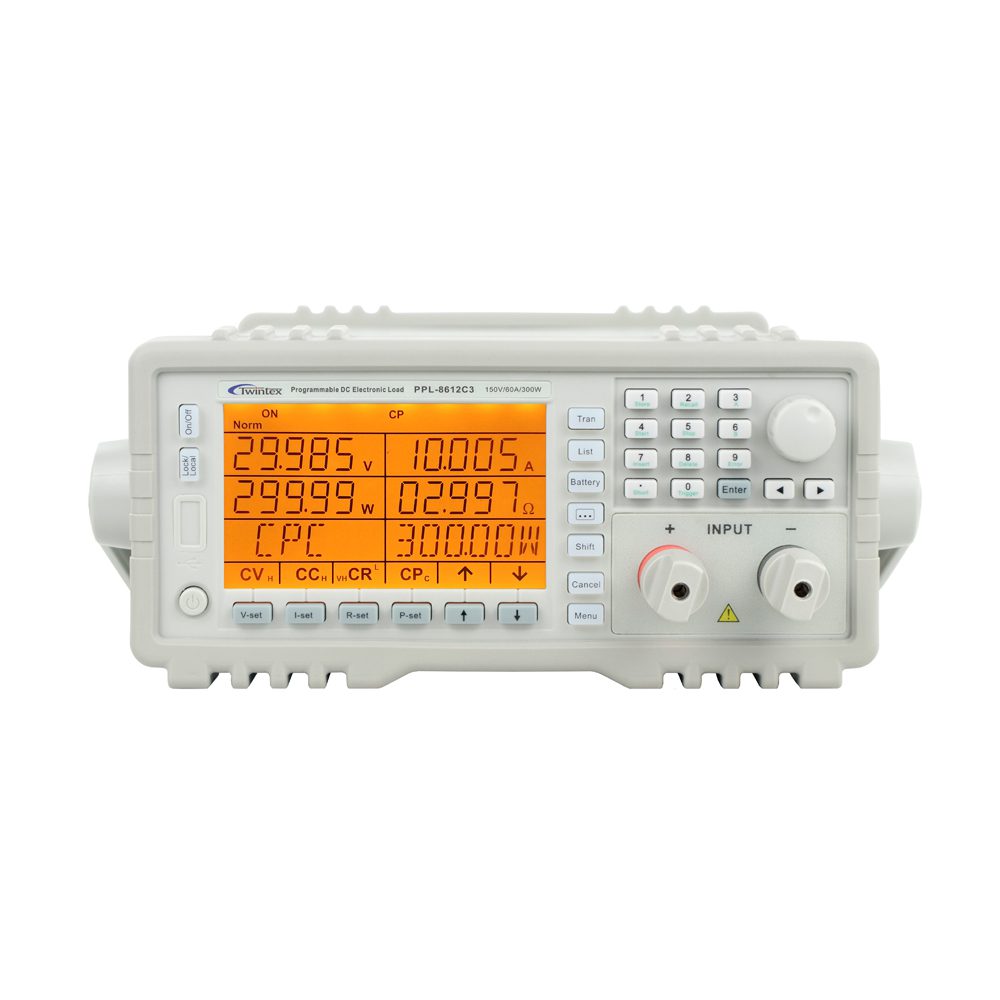

The PPL series DC electronic loads are high precision programmable DC electronic loads, available with rated power 150W 300W and 600W. The DC load can be used as adjustable constant current electronic load, variable constant voltage electronic load, constant power electronic load. The programmable electronic load is widely use as battery load tester and battery capacity tester. The 150W DC electronic load is available with 150W 150V 30A load. The 300W DC electronic load is available with 150V 60A electronic load, 500V15A programmable DC electronic load. The 600W DC electronic load is available with 600W 150V 60A electronic load, 500V 30A DC electronics load.
PPL series are high performance programmable DC electronic load. Four basic functions and nine basic operation modes provides sufficient solutions wherever power sources need to be tested. Especially unique CPV and CPC modes greatly improved the functionality of constant power operation. The strong List Mode function, with Min. step 10ms and Max. step 99999s, allows users to set numbers of cycles at free and to link to other lists, facilitating complicated tests. Equipped with RS-232 interface for PC control, SCPI commands and Labview development platform, the PPL series are designed to provide high reliability, great performance and easy operation in research and production of aerospace, ship building, auto electronics, solar battery, fuel cell, etc.
Features
- 4 basic functions: CC, CV, CR, CP
- 9 basic operation modes: CCL, CCH, CVL, CVH, CRL, CRM, CRH, CPV, CPC
- 24-bit A/D converter and 16-bit D/A converter, 40kHz D/A conversion speed, high resolution & high speed
- Hardware circuit for CR function, faster transient response and higher CR accuracy
- High speed transient test function, max. test frequency 2kHz
- Over current, over voltage, over power, over temperature and reverse voltage protections
- 4.3-inch backlit Segment LCD display
- High speed rotary dial and keypad input
- Auto ON/OFF function
- List Mode function, step 10ms-99999s, free to set numbers of cycles and to be linked to other lists
- Auxiliary functions: short circuit test, battery discharge capacity test
- Save & recall function for frequently used setups, max 100 groups
- Intelligent cooling system, ensure high stability during long-time operation under full load
- Standard RS-232 interface, support SCPI commands, support Labview
- Optional RS-232 to USB cable
Hot models
- PPL-8613C4: Variable Programmable DC Electronic Load, 150V 120A, 600W
