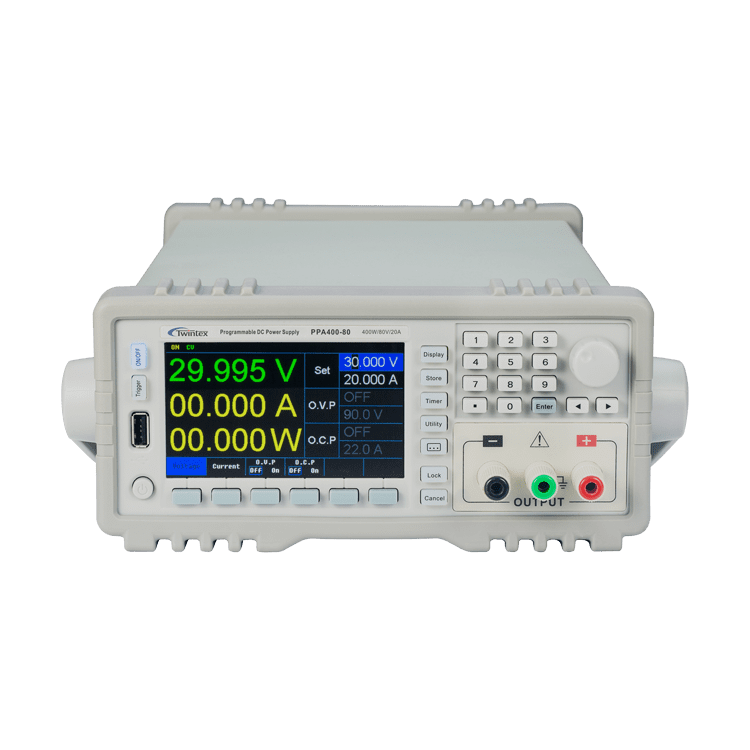

PPA Series 850W Adjustable Auto-Range Output Programmable Switching DC Power Supply
PPA series, a single channel Programmable DC Power Supplies with high power density design, have wide range of voltage/current combinations. Within rated power, the multi-range power supply allows wider voltage and current output than a conventional power supply.The multi-range DC power supply is available with rated power 400W, 800W and 1500W, maximum rated voltage available with 30V 80V 150V 300V and 600V, maximum rated current available with 5A 10A 20A 40A and 100A.For wide range voltage and current applications, one multi-range DC power supply can be used to test the input of both low voltage/high current and high voltage/low current DUTs. The multi-range DC power supply can be used in ATE system to replace multiple DC power suppliers, saving cost and space.
Features
- Wide range of voltage/current combinations in constant power
- Power range 0~400W / 850W / 1500W
- Voltage ranging up to 600V
- Current ranging up to 110A
- 5 digits 4.3-inch TFT LCD display
- 300 memories for voltage, current, timer
- Remote sense function
- Load resistance measurement and display
- Curved battery charge mode
- Adjustable voltage/current rise and fall time
- CV/CC priority setup
- Current limit & Voltage limit alarm setup
- Multiple protections: OVP, OCP, OLP, OPP, OTP and reverse polarity protection
- RS232 & RS485 interfaces, support SCPI & ModBus-RTU commands, support Labview
- USB Host interface for data
- Data record function
Hot models
- PPA850-35: Auto Ranging Programmable DC Power Supply 35V 110A 850W
- PPA850-150: Auto Ranging Programmable DC Power Supply 155V 20A 850W
